Capturing Trust, One Frame at a Time

    4G Smart Body Worn Camera (Model No.: C310E)

    PRODUCT BRIEF INTRODUCTION

    C310E is an innovatively developed 4G smart body worn camera, it is an upgraded version of C310. This BWC supports full internet network connectivity including 4G/Wi-Fi/AP private network. It is equipped with a visual dispatch management platform and can realize remote live video broadcast, cluster intercom, real-time location, wireless image transmission, etc.

    C310E uses Android 12 operating system, a high-performance 8-core processor, a 3.1-inch touch screen, and three front and rear cameras. It has the functional advantages of smooth operation, safe and stable operation, and fast operation.

    Click here to download Product Specification

    FUNCTIONAL ADVANTAGES

    Android system: 8-core 2.0GHz high-performance and low-power processor, Android 12 smart operating system;

    Touch screen: Equipped with 3.1-inch narrow-bezel IPS high-definition display, multi-point capacitive touch screen, and supports glove mode;

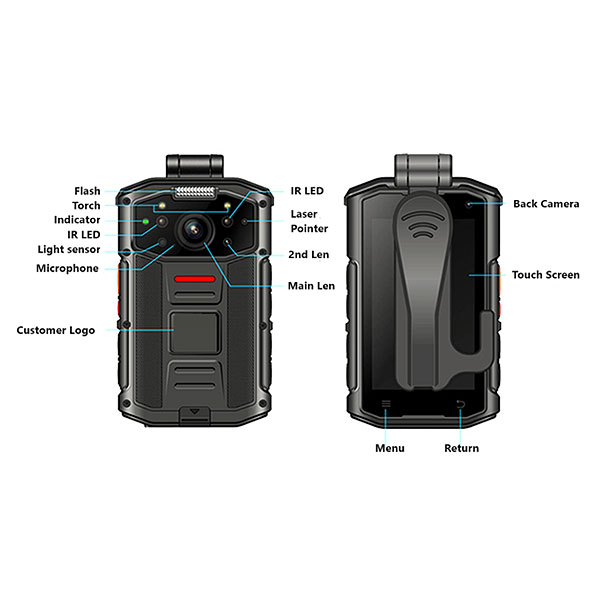

    Customized lens: 3 front and rear cameras, ultra-high-definition 2K recording, AF auto-focus, high-definition lossless shooting at any angle;

    Video compression: 264/H.265 high-definition encoding;

    Infrared night vision: The photosensitive sensor automatically switches to infrared mode, and the outline is clear within 15 meters;

    Full connectivity: 4G cat7 signal, dual-band Wifi signal, AP private network, etc.;

    Gravity sensor: After the law enforcement instrument is hit by a collision or falls to the ground, it can trigger the acceleration sensor and start automatic recording;

    Satellite positioning: built-in GPS/ Bidou /GLONASS accurate real-time positioning, and equipped with geo-fence and track &trace, recording and search functions; also support indoor location by LBS

    Software platform: Equipped with a visual scheduling management platform, supporting 28181 International, WebRTC and more functions can be realized through the 4G platform:

    1. Video live broadcast: The system background can directly access the real-time high-definition video of the law enforcement instrument, with small delay and high speed, which is helpful for the command center to grasp the dynamics ahead;
    2. Wireless file upload: audio and video data can be remotely uploaded to the server through network signals;

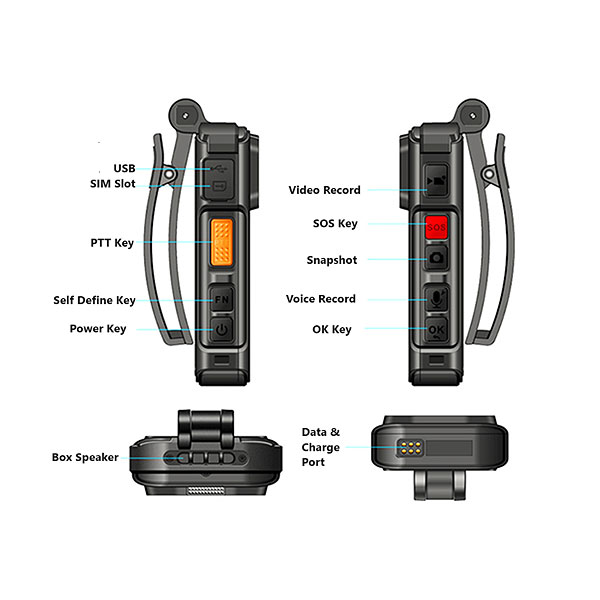

    3. Cluster intercom: Extra-large PTT button, 500,000 times press lifespan, supports terminal-to-terminal, terminal-to-group, and temporary group intercom through geofencing.
    4. Mobile APP direct connection: connect to law enforcement instruments through smart terminals such as mobile phones and tablets;
    5. Management functions: attendance management, system logs, big data analysis, equipment management, user management, remote upgrade, etc.;
    6. Information delivery: text or picture information can be directly delivered to the terminal
    7. SOS function: SOS one-click alarm to alert backend staff and group members.
    8. System compatibility: Web applications, PC applications, Android/iOS applications, etc.
      • Battery: 3500mAh rechargeable lithium battery, single battery charging ≦ 2 hours, single battery can video record continuously for 10 hours, turn on 4G video live streaming for more than 6 hours, when replacing the battery, it will be powered within 5 minutes by backup battery to ensure complete evidence collection, under full charged battery flight mode standby time can reach more than 1000 hours.
      • Dedicated Single port charging bay: equipped with a dedicated single port charging bay, which can upload history data through USB or WiFi while charging.
      • Protection: Two-color mold process, IP68 level, waterproof and dustproof, can survive a total of 30 drops from any 6 sides within 2 meters without damage;
      • External devices: Supports external USB spy cameras, Bluetooth intercom headset cables and more.
